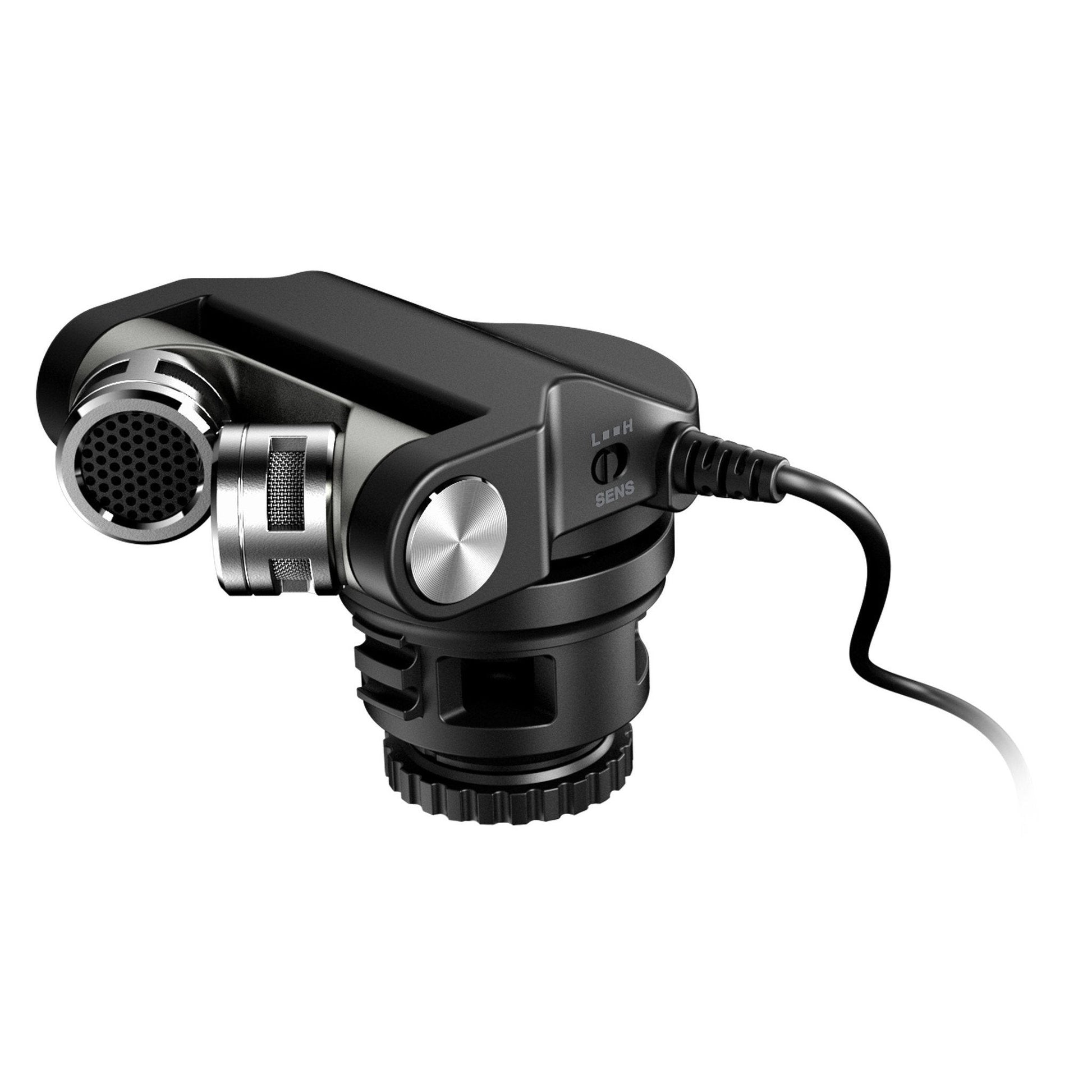

Tascam TM-2X XY Camera Mic

Description

The directional condenser microphones equipped on the TM-2X are the same mics used in our highly-regarded DR-series recorders.

The X-Y pattern and two mic capsules are ideal for capturing a true representation of the sonic atmosphere, whether it's sound from a wide area or directly in front of the camera. As a result, the TM-2X records pristine sound that fits naturally with the recorded video.

We have consistently utilised our expertise in developing recording devices that focus on the design of the analogue circuits behind the mic capsules. As a result, the TM-2X achieves a high performance rating and a frequency response of 50 Hz to 20 kHz. Furthermore, we designed the TM-2X with the capacity to handle high sound pressures up to 120 dB SPL to prevent distortion even in loud scenarios.

Product Features

  • Same mics used in the highly-regarded DR-series recorders
  • Ideal for capturing a true representation of the sonic atmosphere
  • Records pristine sound that fits naturally with the recorded video
  • Consistently utilised expertise in developing recording devices
  • TM-2X achieves a high performance rating and a frequency response of 50 Hz to 20 kHz
  • Capacity to handle high sound pressures up to 120 dB SPL to prevent distortion

Product Specifications

  • Microphone type cardioid
  • Frequency range 50Hz to 20kHz
  • Maximum input level 120dB SPL (at 1kHz, SENS:H, LCF=Flat, RL:2.2kΩ, Vcc:2.5V)
  • Output impedance 1.6k ohms (RL:2.2kΩ, Vcc:2.5V)
  • S/N ratio 74dB (at 1kHz, 1Pa, A weighted)
  • Mic sensitivity switch SENS H:-37dB, SENS L:-52dB, (at 1kHz, 0dB=1V/Pa, RL:2.2kΩ, Vcc:2.5V)
  • Cable length 33cm
  • Plug 3.5 mm (1/8'") TRS stereo mini plug, (Tip: left channel, Ring: right channel, Sleeve: GND)
  • Plug-in power (JEITA standard CP-1203A)
  • TM-2X main unit 57(W)×59(H)×69(D)mm(not including cable and connectors)
  • Noise isolation arm 34(W)×57(H)×142(D)mm
  • Weight TM-2X main unit 75g
  • Noise isolation arm 41g
  • Operating temperatures -5 to 45˚C 23 to 142˚F

Manufacturer: Tascam

Related Collections:

Product form

SKU: TC-TM-2X

Out of stock

£116.00 Incl. VAT
