Artec HT-TBL Preamp, EQ & Pickups

• HT-TBL Triphonic Blender
• EQ with microphone + Phantom DI XLR Jack + PP607 Piezo + MSP50 Soundhole Pickup.
• Curved EQ for upper bout.

• Made in Korea.

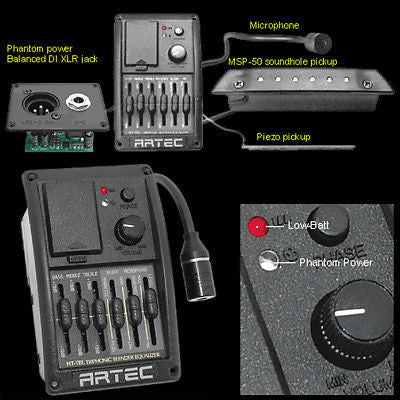

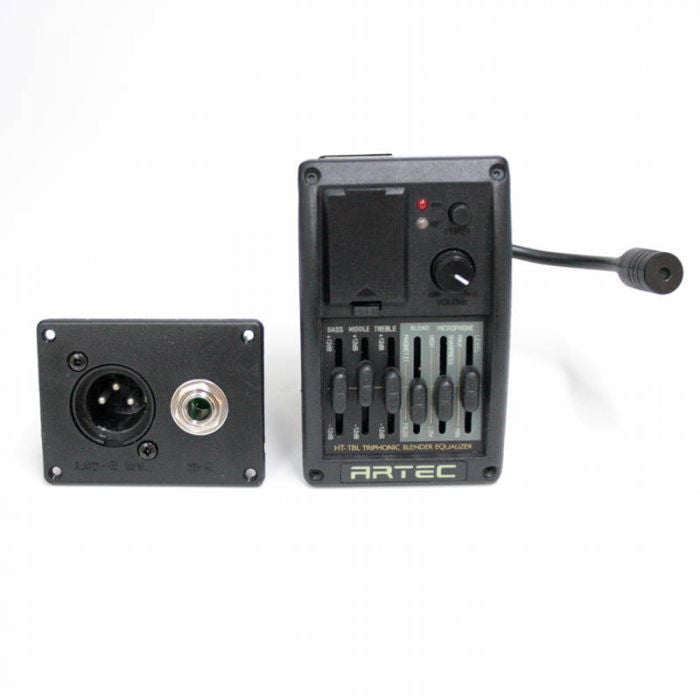

HT-TBL is designed for an 'all in one' unit that blends the sounds from a Condenser Microphone, a Soundhole Magnetic pickup & an under saddle Piezo pickup.

It features 3 band equalizer - Bass, Middle, Treble - with Magnetic / Piezo pickup blender, Microphone controllers (Sharpness & Level), Low battery check LED, Phantom power LED, Phase reverse switch for Anti feedback and Master volume.

It is powered by 9 V battery or 48 V phantom power.  Magnetic - Piezo Blender is a blending system that blends the signals from a Soundhole Magnetic pickup and a under saddle Piezo pickup. Microphone controller is composed with two features - Level controller & Sharpness controller for the fine control. ARTEC provides the finest condenser microphone with all Mic-blending model. BASS controls to adjust the amount of gain at 80 Hz, MIDDLE controls to adjust the amount of gain at 800 Hz, TREBLE controls of gain at 3 kHz and all controls can be boosted or cut the amount of 12 dB.
