Chauvet DJ

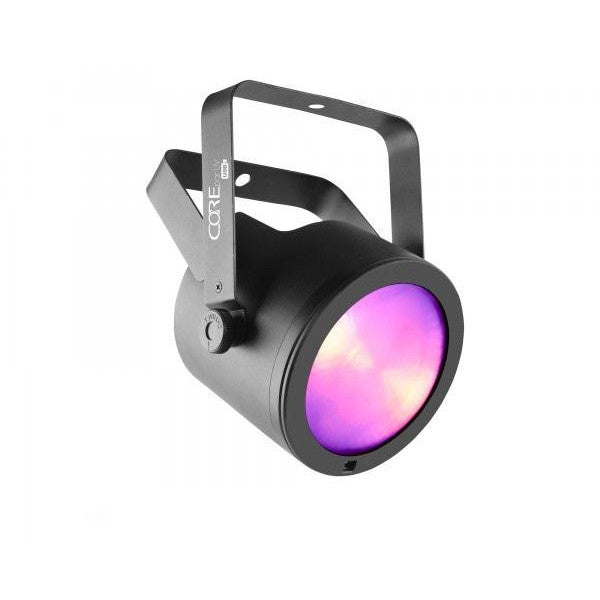

Chauvet COREpar UV USB Magnetic Lens

Chauvet COREpar UV USB Magnetic Lens

Out of stock

Regular price $261.00 USD
Regular price Sale price $261.00 USD
Sale Sold out

Prices VAT inclusive. UK delivery free.

The Chauvet COREpar UV USB is a compact UV wash with COB (Chip-on-Board) LED technology, COREpar UV USB offers D-Fi USB compatibility for wireless master/slave or DMX control.

It includes a separate magnetic lens to provide the flexibility to go from an ultra-wide wash to a narrow beam in seconds. High frequency LED dimming achieves smooth LED fades and ensures a flicker-free performance in video applications.

Multiple control options include DMX, master/slave and sound activation modes as well as wireless control thanks to D-Fi USB compatibility. Point-and-shoot operation of static colours and automated programs is also possible with the optional IRC-6 remote control (sold separately). The unit’s robust sit-flat housing features power and DMX outlets on the side.


  • Chauvet DJ COREpar UV USB LED PAR
  • A compact UV Wash with COB Technology
  • D-Fi USB compatibility for wireless master/slave or DMX control
  • Withstand the harshness of traveling with a robust housing
  • Flicker-free video operation with high-frequency LED dimming
  • Fits best in the CHS-25 VIP Gear Bag



  • DMX Channels:  1 or 5
  • DMX Connectors:  3-pin XLR
  • Light Source:  1 COB LED (UV) 70 W (1.5 A), 50,000 hours life expectancy
  • Wavelength:  390 to 400 nm
  • Strobe Rate:  0 to 33 Hz
  • PWM Frequency:  2,000 Hz
  • Coverage Angle:  100° without Fresnel lens, 50° with Fresnel lens
  • Power Linking:  8 units @ 120 V; 15 units @ 230 V
  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:  67 W, 0.975 A @ 120 V, 60 Hz
  • Power and Current:  65 W, 0.517 A @ 230 V, 50 Hz

Physical & Dimensions

  • Weight:  2.1 kg
  • Size:  139 x 200 x 253 mm
  • Optional Controllers:  IRC-6, D-Fi USB
  • Approvals:  CE
