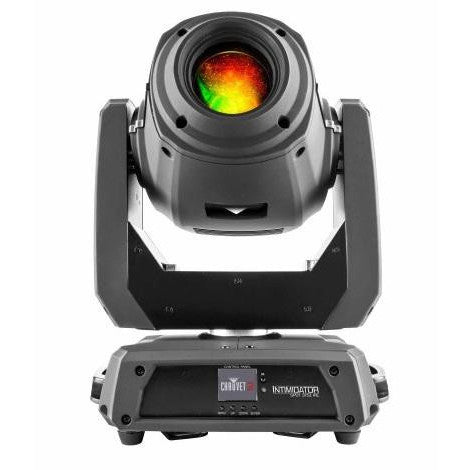

Chauvet Intimidator Spot 375Z IRC

The Chauvet DJ Intimidator Spot 375Z IRC is an exceptionally bright, 150 W LED moving head spot designed for large events.

It features motorised zoom for short-throw or long-throw applications and dual rotating prisms splits the beam for great effects and to cover a larger area.

The motorised focus ensures crisp projections at almost any distance and the built-in Totem mode keeps the beams exactly where you want them.

Intimidator Spot 375Z IRC includes built-in, automated and sound-activated programs or it can be controlled in DMX or Master/Slave mode. The powerCON®-compatible power input/output connections for power linking are also onboard.

FEATURES:

• Exceptionally bright, 150 W LED moving head spot designed for large events
• Motorised zoom for short-throw or long-throw applications
• Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
• Dual rotating prisms splits the beam for great effects and to cover a larger area
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Emit crisp projections at almost any distance using the motorised focus
• Works with the IRC-6 for wireless control and triggering
• Activate built-in, automated and sound-activated programs, or control in DMX or Master/Slave mode
• powerCON®-compatible power input/output connections for power linking
• Fits best in the INTIMROADCASES35X flight case
• Power cable is termainated as bare ended wire

SPECIFICATION:

General

• DMX Channels: 9 or 15
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours:
  • 7 + white
  • split colours
  • continuous scroll at variable speeds
• Gobos:
  • 7 + open (6 aluminium + 1 glass)
  • rotating
  • interchangeable
  • indexing
  • slot-n-lock
  • continuous scroll at variable speeds
• Light Source: 1 LED (white) 150 W, (12.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 1.8 kHz
• Illuminance:
  • (10°): 38,000 lux @ 2 m
  • (23°): 19,850 lux @ 2 m
• Power Linking:
  • 3 units @ 120 V
  • 5 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 277 W, 2.5 A @ 120 V, 60 Hz
  • 268 W, 1.3 A @ 230 V, 50 Hz
• Gobo Size: 24 mm outside, 20 mm image, 1 mm max thickness
• Zoom Angle: (motorised): 10° to 23°

Physical & Dimensions

• Weight: 27.2 lb (12.4 kg)
• Size: 8.6 x 12.7 x 18.3 in (220 x 322 x 466 mm)
• Colour: Black
• Approvals: CE, MET
• Optional Controllers: IRC - 6
• Prism: (1): 6-facet round, bidirectional rotation at variable speeds
• Prism: (2): 5-facet linear, bidirectional rotation at variable speeds

Manufacturer: Chauvet
