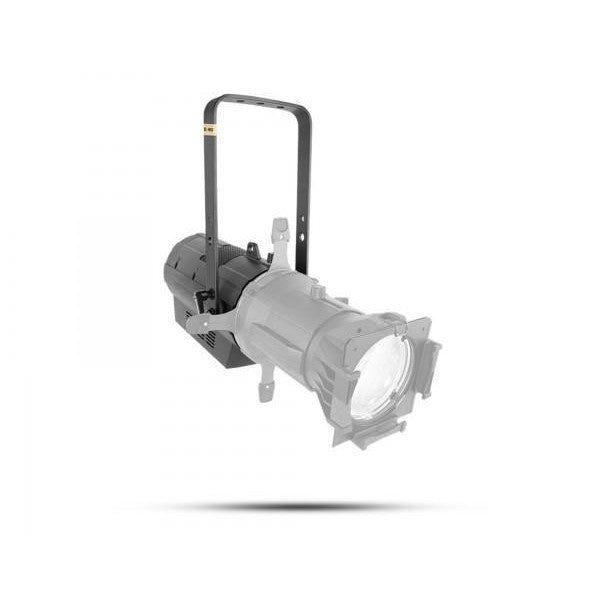

Chauvet Ovation E-160WW Body Only

Description

The Chauvet Ovation E-160WW (Body Only) is an energy saving wonder with an output that rivals a tungsten 575 W light source, yet draws less than 100 W of power.

Dimming is extremely smooth, down to the very bottom of the curve. This virtually silent ellipsoidal projects a flat and even field of light for superior gobo projection.

Control options include selectable PWM, RDM, and on board dimming curve selections.

FEATURES:

  • Warm white ERS style fixture with output similar to a tungsten 575 W
  • Draws less than 100 W of power, a true electrical bill reducing fixture
  • 16-bit dimming, and 8-bit dimming curves complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

SPECIFICATION:

Optical

  • Light Source:  1 LED (WW) 88 W, (2.3 A), 3031 K, 50,000 hours life expectancy
  • Colour Temperature (at full):  3031 K
  • CRI:  90
  • Beam Angle (w/14° lens):  8°
  • Beam Angle (w/19° lens):  12°
  • Beam Angle (w/26° lens):  16°
  • Beam Angle (w/36° lens):  20°
  • Beam Angle (w/50° lens):  31°
  • Beam Angle (w/15°–30° lens)(Narrow):  10°
  • Beam Angle (w/15°–30° lens)(Wide):  15°
  • Beam Angle (w/25°–50° lens)(Narrow):  18°
  • Beam Angle (w/25°–50° lens)(Wide):  24°
  • Field Angle (w/14° lens):  14°
  • Field Angle (w/19° lens):  18°
  • Field Angle (w/26° lens):  25°
  • Field Angle (w/36° lens):  33°
  • Field Angle (w/50° lens):  50°
  • Field Angle (w/15°–30° lens)(Narrow):  16°
  • Field Angle (w/15°–30° lens)(Wide):  29°
  • Field Angle (w/25°–50° lens)(Narrow):  28°
  • Field Angle (w/25°–50° lens)(Wide):  48°
  • Dimming Modes:  4
  • Illuminance (w/14° lens):  10,814 lux @ 5 m
  • Illuminance (w/19° lens):  6,253 lux @ 5 m
  • Illuminance (w/26° lens):  3,189 lux @ 5 m
  • Illuminance (w/36° lens):  1,918 lux @ 5 m
  • Illuminance (w/50° lens):  743 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow):  9,361 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide):  2,947 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow):  2,719 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide):  1,072 lux @ 5 m
  • Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer:  Electronic
  • Shutter/Strobe:  Electronic
  • Zoom:  Manual
  • Strobe Rate:  0 to 29 Hz
  • Colour Temperature Presets:  Yes
  • Dim Modes:  4

Physical & Dimensions

  • Dimensions (fixture only):  495 x 285 x 487 mm
  • Dimensions (w/14° lens extended):  730 x 285 x 487 mm
  • Dimensions (w/26° lens extended):  658 x 285 x 487 mm
  • Dimensions (w/15°–30° lens):  835 x 371 x 371 mm
  • Dimensions (w/25°–50° lens):  690 x 371 x 371 mm
  • Weight (fixture only):  6.4 kg
  • Weight (w/14° lens):  8.89 kg
  • Weight (w/26° lens):  8.3 kg
  • Weight (w/15°–30° lens):  12.7 kg
  • Weight (w/25°–50° lens):  11.7 kg
  • Exterior Colour:  Black
  • Gobo Size (Optional):  “A”:  94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional):  “B”:  94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (14° lens):  7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens):  159 mm
  • Accessory Holder/Gel Frame Size (15°–30° lens):  191 mm
  • Accessory Holder/Gel Frame Size (25°–50° lens):  191 mm

Connections

  • Power Connection:  Edison (Local) plug to Neutrik powerCON
  • Power Input:  Neutrik powerCON
  • Power Output:  Neutrik powerCON
  • Data Connectors:  3- and 5-pin XLR
  • Cable Length (power):  1.5 m

Control

  • Control Protocol:  DMX
  • DMX Channels:  1, 2, 3 or 6
  • Modes/Personalities:  4 personalities (1, 2, 3, 6)

Electrical

  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking:  15 units @ 120 V; 26 units @ 208 V; 28 units @ 230 V
  • Power and Current:  103 W, 0.9 A @ 120 V, 60 Hz
  • Power and Current:  99 W, 0.5 A @ 208 V, 60 Hz
  • Power and Current:  102 W, 0.5 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating:  IP20, dry location

    Manufacturer: Chauvet

    Related Collections:

    Product form

    SKU: CHV-OVATION-E-160WW-BODY

    Out of stock

    £982.00 Incl. VAT

      Delivery informationDelivery information

      There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

      For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

      If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

      Buy now pay laterBuy now pay later

      Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

      If you'd like to use Paypal Pay in 3, please perform the following steps.

      1. Add the item to your cart as normal.

      2. Check out with Paypal.

      3. Log into Paypal.

      4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

      5. Continue the checkout process.

      1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

      Please see more info about the service here.

      As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

      Description

      The Chauvet Ovation E-160WW (Body Only) is an energy saving wonder with an output that rivals a tungsten 575 W light source, yet draws less than 100 W of power.

      Dimming is extremely smooth, down to the very bottom of the curve. This virtually silent ellipsoidal projects a flat and even field of light for superior gobo projection.

      Control options include selectable PWM, RDM, and on board dimming curve selections.

      FEATURES:

      • Warm white ERS style fixture with output similar to a tungsten 575 W
      • Draws less than 100 W of power, a true electrical bill reducing fixture
      • 16-bit dimming, and 8-bit dimming curves complement any lighting scheme
      • Flat, even field of light for superior gobo projection
      • RDM (Remote Device Management) for added flexibility
      • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

      SPECIFICATION:

      Optical

      • Light Source:  1 LED (WW) 88 W, (2.3 A), 3031 K, 50,000 hours life expectancy
      • Colour Temperature (at full):  3031 K
      • CRI:  90
      • Beam Angle (w/14° lens):  8°
      • Beam Angle (w/19° lens):  12°
      • Beam Angle (w/26° lens):  16°
      • Beam Angle (w/36° lens):  20°
      • Beam Angle (w/50° lens):  31°
      • Beam Angle (w/15°–30° lens)(Narrow):  10°
      • Beam Angle (w/15°–30° lens)(Wide):  15°
      • Beam Angle (w/25°–50° lens)(Narrow):  18°
      • Beam Angle (w/25°–50° lens)(Wide):  24°
      • Field Angle (w/14° lens):  14°
      • Field Angle (w/19° lens):  18°
      • Field Angle (w/26° lens):  25°
      • Field Angle (w/36° lens):  33°
      • Field Angle (w/50° lens):  50°
      • Field Angle (w/15°–30° lens)(Narrow):  16°
      • Field Angle (w/15°–30° lens)(Wide):  29°
      • Field Angle (w/25°–50° lens)(Narrow):  28°
      • Field Angle (w/25°–50° lens)(Wide):  48°
      • Dimming Modes:  4
      • Illuminance (w/14° lens):  10,814 lux @ 5 m
      • Illuminance (w/19° lens):  6,253 lux @ 5 m
      • Illuminance (w/26° lens):  3,189 lux @ 5 m
      • Illuminance (w/36° lens):  1,918 lux @ 5 m
      • Illuminance (w/50° lens):  743 lux @ 5 m
      • Illuminance (w/15°–30° lens)(Narrow):  9,361 lux @ 5 m
      • Illuminance (w/15°–30° lens)(Wide):  2,947 lux @ 5 m
      • Illuminance (w/25°–50° lens)(Narrow):  2,719 lux @ 5 m
      • Illuminance (w/25°–50° lens)(Wide):  1,072 lux @ 5 m
      • Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

      Dynamic Effects

      • Dimmer:  Electronic
      • Shutter/Strobe:  Electronic
      • Zoom:  Manual
      • Strobe Rate:  0 to 29 Hz
      • Colour Temperature Presets:  Yes
      • Dim Modes:  4

      Physical & Dimensions

      • Dimensions (fixture only):  495 x 285 x 487 mm
      • Dimensions (w/14° lens extended):  730 x 285 x 487 mm
      • Dimensions (w/26° lens extended):  658 x 285 x 487 mm
      • Dimensions (w/15°–30° lens):  835 x 371 x 371 mm
      • Dimensions (w/25°–50° lens):  690 x 371 x 371 mm
      • Weight (fixture only):  6.4 kg
      • Weight (w/14° lens):  8.89 kg
      • Weight (w/26° lens):  8.3 kg
      • Weight (w/15°–30° lens):  12.7 kg
      • Weight (w/25°–50° lens):  11.7 kg
      • Exterior Colour:  Black
      • Gobo Size (Optional):  “A”:  94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
      • Gobo Size (Optional):  “B”:  94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
      • Accessory Holder/Gel Frame Size (14° lens):  7.5 in (191 mm)
      • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens):  159 mm
      • Accessory Holder/Gel Frame Size (15°–30° lens):  191 mm
      • Accessory Holder/Gel Frame Size (25°–50° lens):  191 mm

      Connections

      • Power Connection:  Edison (Local) plug to Neutrik powerCON
      • Power Input:  Neutrik powerCON
      • Power Output:  Neutrik powerCON
      • Data Connectors:  3- and 5-pin XLR
      • Cable Length (power):  1.5 m

      Control

      • Control Protocol:  DMX
      • DMX Channels:  1, 2, 3 or 6
      • Modes/Personalities:  4 personalities (1, 2, 3, 6)

      Electrical

      • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
      • Power Linking:  15 units @ 120 V; 26 units @ 208 V; 28 units @ 230 V
      • Power and Current:  103 W, 0.9 A @ 120 V, 60 Hz
      • Power and Current:  99 W, 0.5 A @ 208 V, 60 Hz
      • Power and Current:  102 W, 0.5 A @ 230 V, 50 Hz

      Certifications / Qualifications

      • CE, MET
      • IP Rating:  IP20, dry location

        Manufacturer: Chauvet
