Chauvet Ovation E-910FC Body Only

The Chauvet Ovation E-910FC in black is fully featured colour mixing ERS-style fixture.

It features full RGBA-Lime colour mixing with output rivalling an incandescent fixture. Sacrifice nothing when it comes to control options with modes providing full 16-bit dimming (per colour and master), selectable PWM, RDM and on-board dimming curve selection.

Also accessible is our Virtual Colour Wheel which matches popular gel colours when projected by a tungsten source, in addition we have added colour temperature pre-sets from 2800 to 6500 K that match a tungsten source to perfection.

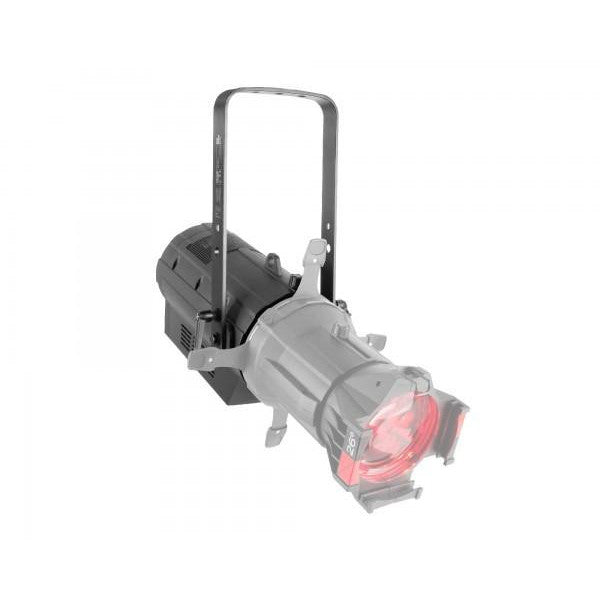

This unit includes the Ovation E-910FC body only – barrel and lens tubes are available separately.

FEATURES:

• Chauvet PRO Ovation E910FC LED Style Luminaire
• This item is the body only - does not include 26' lens
• Full Colour LED (RGBAL) ERS-style lighting fixture
• Perfect for theatre, film and production
• Virtual Colour wheel with colour matched to popular Rosco Gel colours
• Virtually silent operation for use in studio and theatre applications

SPECIFICATION:

Optical

• Light Source:  91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (1.4A), 5850 K, 50,000 hours life expectancy
• Colour Temperature (at full):  5850K
• Beam Angle (w/19° lens):  19°
• Beam Angle (w/26° lens):  24°
• Beam Angle (w/36° lens):  28°
• Beam Angle (w/50° lens):  41°
• Beam Angle (w/15°–30° lens)(Narrow):  13°
• Beam Angle (w/15°–30° lens)(Wide):  24°
• Beam Angle (w/25°–50° lens)(Narrow):  23°
• Beam Angle (w/25°–50° lens)(Wide):  36°
• Field Angle (w/19° lens): 19°
• Field Angle (w/26° lens):  26°
• Field Angle (w/36° lens):  34°
• Field Angle (w/50° lens):  51°
• Field Angle (w/15°–30° lens)(Narrow):  15°
• Field Angle (w/15°–30° lens)(Wide):  29°
• Field Angle (w/25°–50° lens)(Narrow):  26°
• Field Angle (w/25°–50° lens)(Wide):  50°
• Dimming Modes:  9
• Lumens (w/19° lens):  3,236
• Lumens (w/26° lens):  4,316
• Lumens (w/36° lens):  3,918
• Lumens (w/50° lens):  3,813
• Illuminance (w/19° lens):  3,017 lux @ 5 m
• Illuminance (w/26° lens):  1,894 lux @ 5 m
• Illuminance (w/36° lens):  1,137 lux @ 5 m
• Illuminance (w/50° lens):  513 lux @ 5 m
• Illuminance (w/15°–30° lens)(Narrow):  3,784 lux @ 5 m
• Illuminance (w/15°–30° lens)(Wide):  1,223 lux @ 5 m
• Illuminance (w/25°–50° lens)(Narrow):  1,657 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide):  647 lux @ 5 m
• Selectable PWM:  600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Focus:  Manual
• Strobe Rate:  0 to 28 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Pre-sets:  Yes
• Dim Modes:  4
• Built-in Automated Programs:  Yes

Connections

• Power Connection:  Edison (Local) plug to Neutrik powerCON
• Power Connection:  Edison (Local) plug to Neutrik powerCON
• Power Output:  Neutrik powerCON
• Data Connectors:  5-pin XLR
• Cable Length (power):  1.5 m

Control

• Protocol(s):  DMX, RDM
• DMX Channels:  3, 5, 7, 10, 12, 13 or 15
• Modes/Personalities:  7 personalities (3, 5, 7, 10, 12, 13, 15)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
• Power and Current:  240 W, 2.006 A @ 120 V, 60 Hz
• Power and Current:  234 W, 1.160 A @ 208 V, 60 Hz
• Power and Current:  234 W, 1.074 A @ 230 V, 50 Hz

Physical & Dimensions

• Dimensions (fixture only):  495 x 285 x 487 mm
• Dimensions (w/26° lens extended):  658 x 285 x 487 mm
• Dimensions (w/15°–30° lens):  835 x 371 x 371 mm
• Dimensions (w/25°–50° lens):  690 x 371 x 371 mm
• Weight (fixture only):  7.1 kg
• Weight (w/26° lens):  9 kg
• Weight (w/15°–30° lens):  13.3 kg
• Weight (w/25°–50° lens):  12.2 kg
• Exterior Colour:  Black
• Gobo Size (Optional):  “A”:  94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional):  “B”:  94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens):  159 mm
• Accessory Holder/Gel Frame Size (15°–30° lens):  191 mm
• Accessory Holder/Gel Frame Size (25°–50° lens):  191 mm

Certifications / Qualifications

• CE, METIP Rating:  IP20, dry location

Manufacturer: Chauvet
