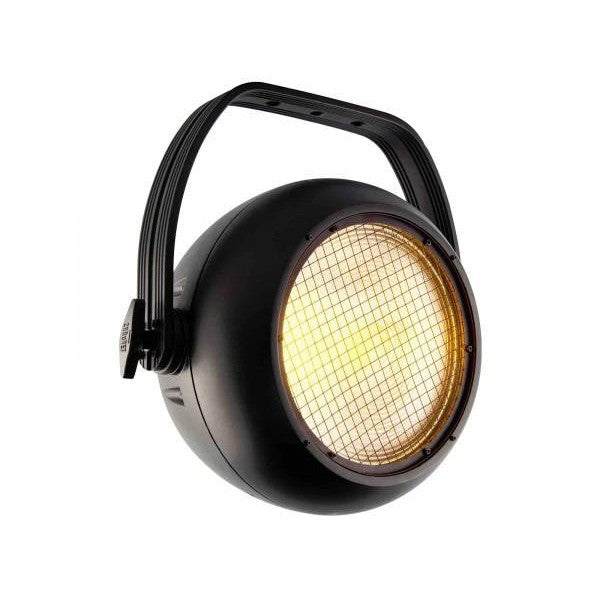

Chauvet Strike 1 Strobe

The Chauvet STRIKE 1 is a big, bold, outdoor-ready blinder powered by an intense 230 W warm white LED source.

It is also an awesome strobe and a wide area floodlight. Its IP rated fan keeps it cool enough for use as a wash while IP rated direct power and DMX connections eliminate undesirable whips. An emulated “amber shift” warms the colour temperature of the light as it dims to mimic incandescent lights perfectly.

FEATURES:

• Big, bold and bright!
• Powered by an intense 230W warm white LED source
• Makes a great blinder, strobe and even a wide area flood light
• IP65 rated and features an IP rated fan, ideal for outdoor use
• Produces a warm light temperature with emulated "red shift"
• Dims to mimic incandescent lights perfectly

SPECIFICATION:

Optical

• Light Source:  1 LED (WW) 230 W, (4.1 A), 2688 K, 50,000 hours life expectancy
• Light Source:  8 LEDs (Amber) 2 W, (0.7 A), 50,000 hours life expectancy
• Colour Temperature (at full):  2688 K
• Colour Temperature (at 10%):  1941 K
• CRI:  93
• Beam Angle:  30°
• Field Angle:  51°
• Illuminance:  1,119 lux @ 5 m
• Selectable PWM:  600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Strobe Rate:  0 to 25 Hz
• Dim Modes:  4
• Built-in Automated Programs:  Yes

Connections

• Power Connection:  Edison (Local) plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Power Output:  Seetronic Powerkon IP65
• Data Connectors:  5-pin XLR
• Cable Length (power):  1.5 m

Control

• Protocol(s):  DMX, RDM
• DMX Channels:  2, 3, 4 or 5
• Modes/Personalities:  4 personalities (2ch, 3ch, 4ch, 5ch)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
• Power and Current:  266 W, 2.209 A @ 120 V, 60 Hz
• Power and Current:  255 W, 1.306 A @ 208 V, 60 Hz
• Power and Current:  258 W, 1.201 A @ 230 V, 50 Hz

Physical & Dimensions

• Dimensions:  380 x 188 x 371 mm
• Weight:  8.6 kg
• Exterior Colour:  Black
• Housing Material:  Aluminium die-cast
• Accessory Holder/Gel Frame Size:  225 mm

Certifications / Qualifications

• CEIP Rating:  IP65, temporary outdoor/wet use

Manufacturer: Chauvet
