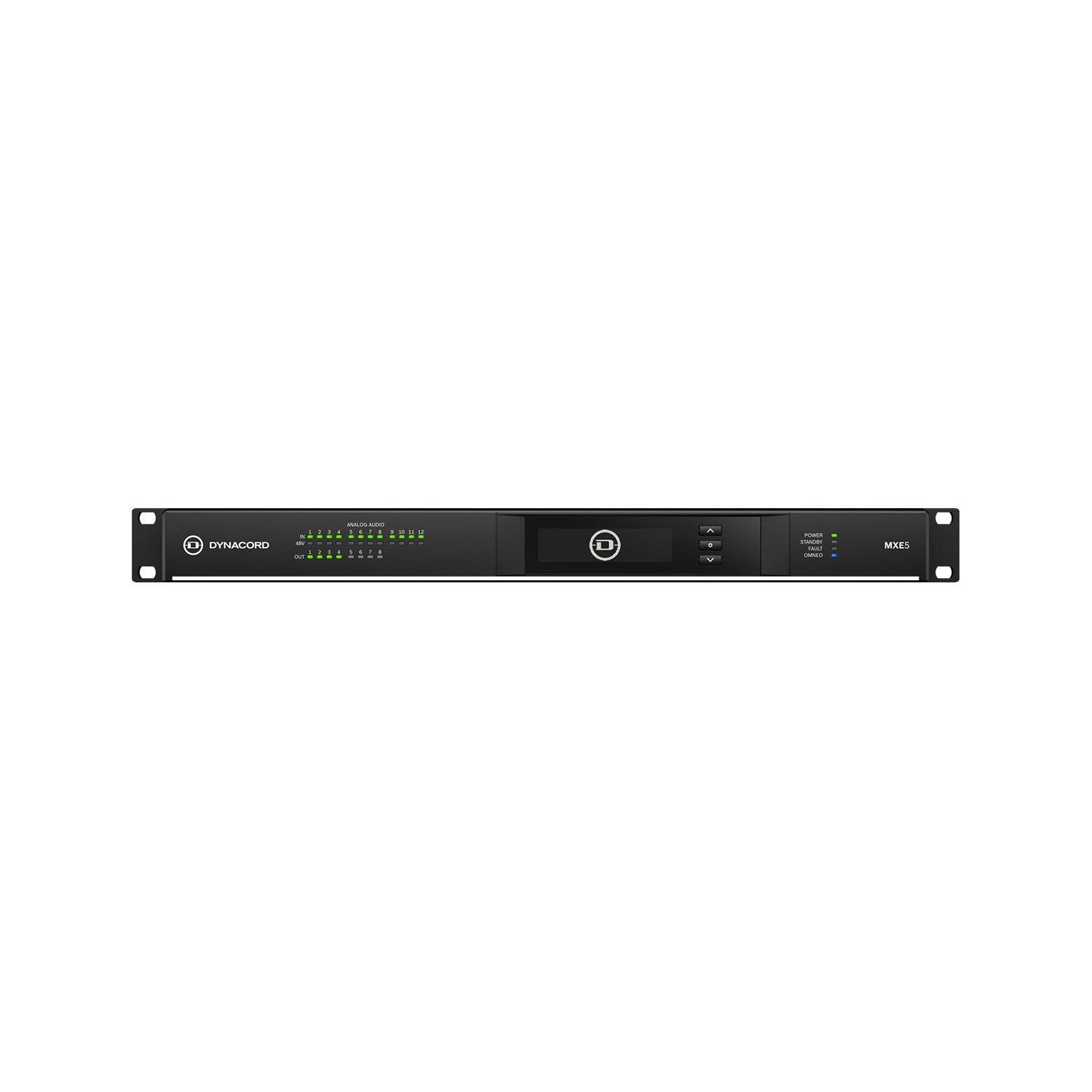

Dynacord MXE5 Matrix Mix Engine

Description

The MXE5 is the first member of the MXE matrix mix engine series. The 24 x 24 crosspoint performance audio matrix offers both routing and mixing functionalities, with 12 analogue mic/line inputs and eight line outputs.

At the same time, the MXE5 serves as a communications hub for all IP-based peripherals and provides comprehensive supervision of all system-wide commands.

Delivering the highest audio quality

The MXE5 benefits from advanced DSP, providing outstanding audio quality and dynamic range. This is ensured by a sampling rate of 96 kHz and the industry’s lowest audio latency of less than 0.22 ms.

Ready for a wide range of applications

The MXE5 is designed for consultants, production companies, specifiers and system integrators who demand the highest-quality BGM and uncompromising live performance sound.

Built on comprehensive software

The MXE5 integrates completely with Dynacord’s SONICUE sound system software, one of the most powerful software interfaces in the industry, offering comprehensive control and easy, intuitive operation.

Thanks to SONICUE, the MXE5 can be assigned with personalization features, rights management and GPIO configuration. The optional TPC-1 touch panel controller has a low-profile form factor and features Example interfaces a 5.7” HD display.

Made for mixing and routing

The MXE5 offers a variety of functions beyond being a powerful crosspoint matrix; it also works as both a system manager and an OCA controller with complete monitoring and supervision abilities.

SPECIFICATION:

General

  • Matrix Size: 24 x 24
  • Sampling Rate: 48 kHz /96 kHz
  • DANTE IN/OUT: 24/24
  • Analog Inputs: 12 mic/line
  • Analog Outputs: 8
  • Max. Input/Output Level: + 22 dBu
  • Signal to Noise Ratio (Inputs / Outputs): > 118 dB
  • Signal Processing: 32/40-bit floating point
  • THD+N: < 0.002 %
  • Crosstalk: < -80 dB
  • Latency (Analogue IN/OUT, 48 KHZ / 96 KHZ): < 0.45 ms / < 0.22 ms
  • Control Ports: 8 GPIO

Physical & Dimensions

  • Dimensions (W X H X D): 483 x 43.5 x 471 mm (19", 1 RU)
  • Weight: 6.0 kg (13.2 lbs)

Manufacturer: Dynacord

Related Collections:

Product form

SKU: DYNACORD-MXE5

Out of stock

£3,173.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The MXE5 is the first member of the MXE matrix mix engine series. The 24 x 24 crosspoint performance audio matrix offers both routing and mixing functionalities, with 12 analogue mic/line inputs and eight line outputs.

    At the same time, the MXE5 serves as a communications hub for all IP-based peripherals and provides comprehensive supervision of all system-wide commands.

    Delivering the highest audio quality

    The MXE5 benefits from advanced DSP, providing outstanding audio quality and dynamic range. This is ensured by a sampling rate of 96 kHz and the industry’s lowest audio latency of less than 0.22 ms.

    Ready for a wide range of applications

    The MXE5 is designed for consultants, production companies, specifiers and system integrators who demand the highest-quality BGM and uncompromising live performance sound.

    Built on comprehensive software

    The MXE5 integrates completely with Dynacord’s SONICUE sound system software, one of the most powerful software interfaces in the industry, offering comprehensive control and easy, intuitive operation.

    Thanks to SONICUE, the MXE5 can be assigned with personalization features, rights management and GPIO configuration. The optional TPC-1 touch panel controller has a low-profile form factor and features Example interfaces a 5.7” HD display.

    Made for mixing and routing

    The MXE5 offers a variety of functions beyond being a powerful crosspoint matrix; it also works as both a system manager and an OCA controller with complete monitoring and supervision abilities.

    SPECIFICATION:

    General

    • Matrix Size: 24 x 24
    • Sampling Rate: 48 kHz /96 kHz
    • DANTE IN/OUT: 24/24
    • Analog Inputs: 12 mic/line
    • Analog Outputs: 8
    • Max. Input/Output Level: + 22 dBu
    • Signal to Noise Ratio (Inputs / Outputs): > 118 dB
    • Signal Processing: 32/40-bit floating point
    • THD+N: < 0.002 %
    • Crosstalk: < -80 dB
    • Latency (Analogue IN/OUT, 48 KHZ / 96 KHZ): < 0.45 ms / < 0.22 ms
    • Control Ports: 8 GPIO

    Physical & Dimensions

    • Dimensions (W X H X D): 483 x 43.5 x 471 mm (19", 1 RU)
    • Weight: 6.0 kg (13.2 lbs)

    Manufacturer: Dynacord
