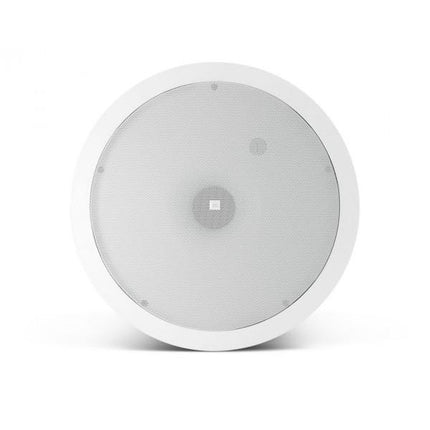

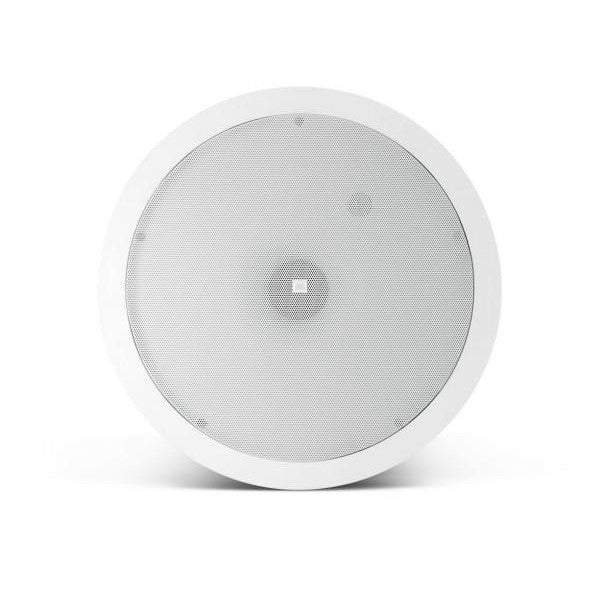

JBL Control 19CST 8" In-Ceiling Sub

Description

The Jbl Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.

Main Features

  • Unique Nested Chamber design and Linear
  • Long excursion 200 mm (8 in) driver
  • Packaged with grille, backcan and tile rails for fast
  • Simple installation and wire connection method
  • Packaged with grille, backcan and tile rails
  • Removable locking connector with screw-down terminals
  • Priced and Sold Individually

Product Specifications

General

  • Frequency Range: 42 Hz - 200 Hz
  • Power Capacity: 200 W Continuous Program Power
  • Transformer Taps:
    • 70 V: 75 W, 30 W, 15 W & 7.5 W
    • 100 V: 75 W, 30 W, & 15 W
  • Nominal Coverage Angle: 180° conical coverage
  • Rated Maximum SPL: 115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)
  • Nominal Impedance: 8 ohms
  • Low Frequency: 200mm (8.0 in) Polypropylene cone. 38 mm (1.5 in) coil on aluminium former
  • Enclosure Material: Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
  • Terminations: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
  • Safety Agency Rating: In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.

Physical & Dimensions

  • Height: 345mm
  • Diameter: 345mm
  • Front of Ceiling Tile to Back of Backcan: 318mm
  • Cutout Size: 305mm
  • Net Weight (ea): 6.3kg (14 lb)
  • Shipping Weight (pair): 14.3 kg (32 lb)

Manufacturer: JBL

Related Collections:

Product form

SKU: JBL-CONTROL-19CST

Out of stock

£383.00 Incl. VAT
