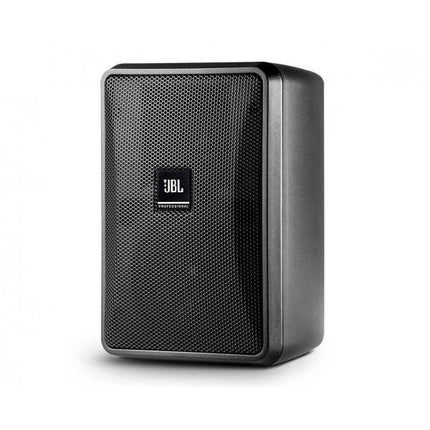

JBL Control 23-1 3" Speaker

Description

The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors.

This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

Main Features

  • JBL Control 23-1 Ultra Compact Indoor/Outdoor Speaker (Black)
  • 3" woofer with woven fiberglass cone
  • Features a Built-in InvisiBall mounting hardware
  • Wide 100 x 100deg coverage
  • Weather resistant enclosure and transducers
  • High-design look that fits into a wide range of decors
  • Priced and Sold Individually

Product Specifications

General

  • Frequency Range (-10 dB): 70 Hz to 20 kHz
  • Frequency Response (+/-3 dB): 95 Hz - 19 kHz
  • Power Rating:
    • 100W Continuous Program (2 hrs)
    • 50 W (200W peak), Continuous Pink Noise (2 hrs)
    • 40 W (160W peak) Continuous Pink Noise (100 hrs)
  • Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak
  • Maximum SPL: 103 dB ave. Continuous Pink Noise (109 dB peak)
  • Sensitivity: 86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  • Coverage Angle: 100° x 100°
  • Directivity Factor (Q): 5.8 (averaged 1kHz – 16kHz)
  • Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz)
  • Nominal Impedance: 8 ohms (THRU setting)
  • Crossover Type: 2nd order low-pass, 2nd order high-pass
  • Transformer Taps:
    • 70V: 15W, 7.5W, 3.7W, 1.8W
    • 100V: 15W, 7.5W, 3.7W
    • Insertion Loss <0.43 dB at any tap setting
    • Thru Setting: 8Ω nominal
  • Recommended Protective High-Pass: 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
  • Low Frequency Driver: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
  • High Frequency Driver: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
  • Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
  • Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
  • Installation: InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
  • Environmental: IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
  • Termination: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
  • Agency Rating: ROHS-compliant; Transformer UL Recognized per UL1876

Physical & Dimensions

  • Height: 200mm
  • Width: 141mm
  • Depth: 111mm
  • Deep total when mounted on InvisiBall wall-mount bracket: 141mm
  • Net Weight: 1.8 kg (4.0 lbs)
  • Shipping Weight: 3.85kg (8.5 lbs) for the pair-pack (for 2 speakers) 12.0kg (26.5lbs) for the master-pack (for 6 speakers)

Manufacturer: JBL

Related Collections:

Product form

SKU: JBL-CONTROL-23-1

In stock

£149.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors.

    This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

    Main Features

    • JBL Control 23-1 Ultra Compact Indoor/Outdoor Speaker (Black)
    • 3" woofer with woven fiberglass cone
    • Features a Built-in InvisiBall mounting hardware
    • Wide 100 x 100deg coverage
    • Weather resistant enclosure and transducers
    • High-design look that fits into a wide range of decors
    • Priced and Sold Individually

    Product Specifications

    General

    • Frequency Range (-10 dB): 70 Hz to 20 kHz
    • Frequency Response (+/-3 dB): 95 Hz - 19 kHz
    • Power Rating:
      • 100W Continuous Program (2 hrs)
      • 50 W (200W peak), Continuous Pink Noise (2 hrs)
      • 40 W (160W peak) Continuous Pink Noise (100 hrs)
    • Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak
    • Maximum SPL: 103 dB ave. Continuous Pink Noise (109 dB peak)
    • Sensitivity: 86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
    • Coverage Angle: 100° x 100°
    • Directivity Factor (Q): 5.8 (averaged 1kHz – 16kHz)
    • Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz)
    • Nominal Impedance: 8 ohms (THRU setting)
    • Crossover Type: 2nd order low-pass, 2nd order high-pass
    • Transformer Taps:
      • 70V: 15W, 7.5W, 3.7W, 1.8W
      • 100V: 15W, 7.5W, 3.7W
      • Insertion Loss <0.43 dB at any tap setting
      • Thru Setting: 8Ω nominal
    • Recommended Protective High-Pass: 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
    • Low Frequency Driver: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
    • High Frequency Driver: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
    • Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
    • Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
    • Installation: InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
    • Environmental: IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
    • Termination: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
    • Agency Rating: ROHS-compliant; Transformer UL Recognized per UL1876

    Physical & Dimensions

    • Height: 200mm
    • Width: 141mm
    • Depth: 111mm
    • Deep total when mounted on InvisiBall wall-mount bracket: 141mm
    • Net Weight: 1.8 kg (4.0 lbs)
    • Shipping Weight: 3.85kg (8.5 lbs) for the pair-pack (for 2 speakers) 12.0kg (26.5lbs) for the master-pack (for 6 speakers)

    Manufacturer: JBL
