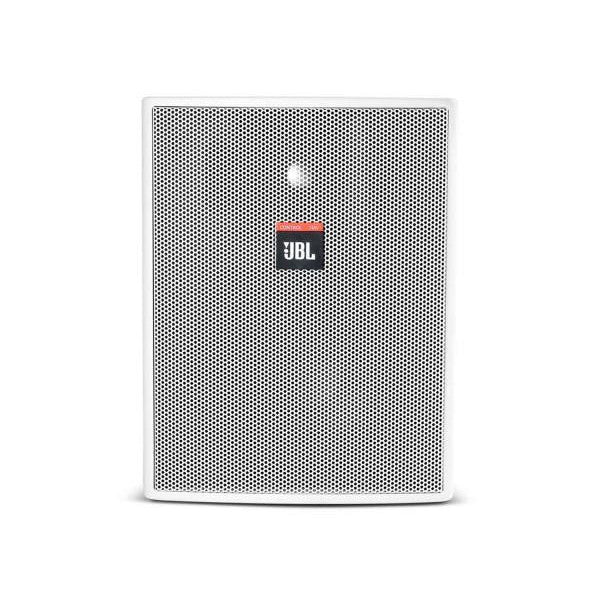

JBL Control 25AV-WH 5.25" Speaker

The Control® 25AV-WH utilises a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.

Main Features

• 5.25 inch polypropylene coated woofer and a 0.75in Titanium coated horn loaded tweeter
• Built-in InvisiBall mounting hardware
• Weather resistant enclosure and transducers
• Readily paintable
• 90 degrees x 90 degrees high frequency horn
• Overload Protection Circuitry
• In White
• Priced and Sold Individually

Product Specifications

General

• Frequency Range: 70 Hz - 23 kHz (-10 dB)
• Power Capacity: 200 W Continuous Program Power; 100 W Continuous Pink Noise
• Transformer Taps:
  • 70V: 60 W, 30 W, 15 W, 7.5 W
  • 100V: 60 W, 30 W, 15 W
• Nominal Sensitivity: 87 dB SPL, 1 W @ 1 m (3.3 ft)
• Midrange (±1.5 dB, typical): 130 Hz - 14 kHz
• Nominal Coverage: 100° x 100°
• Maximum SPL @ 1m: 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
• Directivity Factor (Q): 4.9 dB, averaged 500 Hz to 4 kHz
• Directivity Index (DI): 6.9 dB, averaged 500 Hz to 4 kHz
• Nominal Impedance: 8 ohms
• Minimum Impedance: 6.7 ohms at 230 Hz
• Crossover Network: Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
• Low Frequency: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
• High-Frequency: 20 mm (.75 in) titanium coated PEI
• Enclosure Material: High Impact polystyrene
• Grille: Painted stainless steel, black or white to match cabinet, paintable
• Overload Protection: Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
• Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
• Terminations: Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
• Safety Agency Rating: Transformer is listed per UL1876
• Rotation: Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44° all directions

Physical & Dimensions

• Height: 236mm
• Width: 186mm
• Depth: 159mm
• Weight: 4.0kg

Manufacturer: JBL
