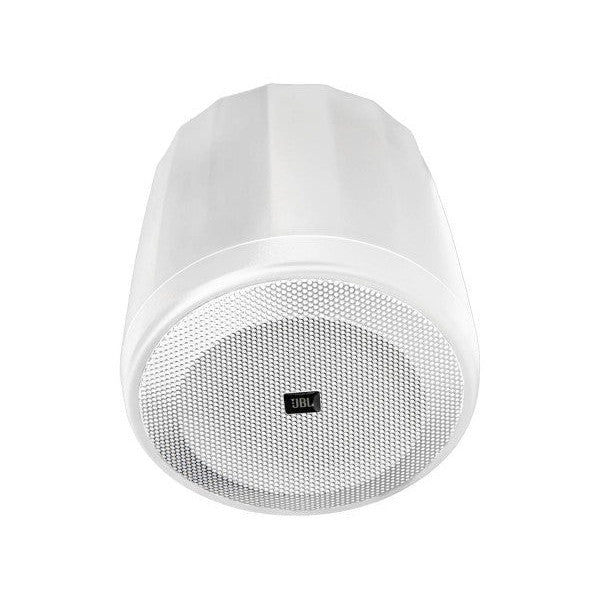

JBL Control 62P-WH 2.5" Pendant Speaker

Ideal for visually sensitive applications, The Control 62P 2" driver is great for speech and mid-high music applications (external high-pass required).

For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.

Main Features

• 60mm driver, ideal for speech and mid-high music applications
• Can drive 2 or 4 pieces from Control 50S/T for full-range, wide bandwidth performance
• Can intermix with Control 52 surfacemount and Control 42C in-ceiling satellite speakers
• Hanging hardware with 4.5 m galvanized steel cable
• Easy to adjust clamp
• White coloured
• Priced and Sold Individually

Product Specifications

General

• Frequency Response (-10 dB): 150 Hz – 20 kHz
• Frequency Range (±3 dB): 200 Hz – 17 kHz
• Power Capacity:
  • 50 Watts Continuous Program Power (2 hrs)
  • 25 Watts Continuous Pink Noise (2 hrs)
  • 30 Watts Continuous Program Power (100 hrs)
  • 15 Watts Continuous Pink Noise (100 hrs)
• Nominal Sensitivity:
  • 87 dB (4.0 V, 1 W)
  • 84 dB (2.83 V)
• Nominal Coverage Angle: 140° (+25°/-50°)
• Directivity (Q): 4.7
• Directivity Index (DI): 6.2 dB
• Rated Maximum SPL @ 1m: 97 dB continuous pink noise, 103 dB peak
• Rated Impedance: 16 ohms (no transformer taps)
• Recommended High-Pass Frequency: 150 Hz
• Transducer: Driver: 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
• Enclosure Material: High impact polystyrene
• Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
• Termination: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanised-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Physical & Dimensions

• Diameter: 128mm
• Height to top of cabinet: 121mm
• Height to top of suspension bracket: 141mm
• Weight: 0.7kg

Manufacturer: JBL
