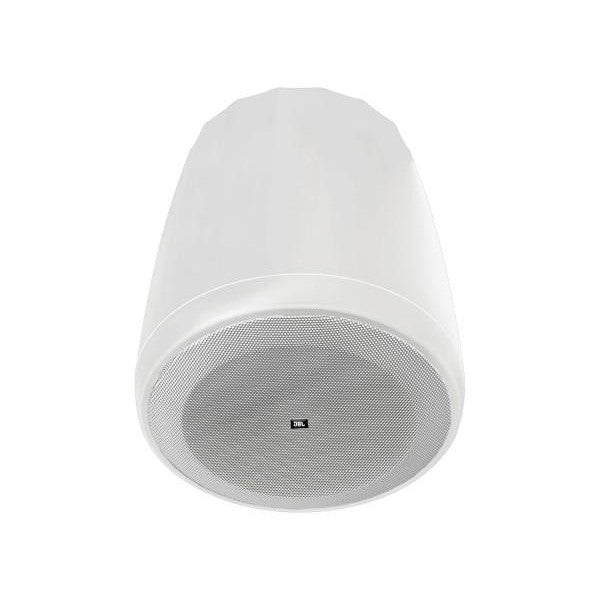

JBL Control 65P/T-WH Pendant Speaker

The JBL Control 65 P/T-WH White Pendant Speaker incorporates JBL’s exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space.

Main Features

• RBI Radiation Boundary Integrator Technology
• 120 degrees conical coverage
• Coaxial design featuring 130mm woofer and 20mm soft-dome tweeter
• Hanging hardware with 4.5m galvanised steel cable
• Easy to adjust clamp
• White coloured
• Priced and Sold Individually

Product Specifications

General

• Frequency Response (-10 dB): 55 Hz – 20 kHz
• Frequency Range (±3 dB): 78 Hz – 18 kHz
• Power Capacity:
• 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
• 150 Watts Continuous Program Power
• Nominal Sensitivity: 86 dB
• Nominal Coverage Angle: 120° (+20°/-10°)
• Directivity (Q): 5.3
• Directivity Index (DI): 7.2 dB
• Rated Maximum SPL @ 1m: 105 dB continuous pink noise, 111 dB peak
• Rated Impedance: 8 ohms
• Transformer Taps:
• 70V: 60W, 30W, 15W & 7.5W
• 100V: 60W, 30W, 15W
• Transformer Insertion Loss: 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
• LF Driver:
• 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround,
• 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
• HF Driver: 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminium voice coil former
• Enclosure Material: High impact polystyrene
• Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
• Termination: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanised-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Physical & Dimensions

• Diameter: 234mm
• Height to top of Cabinet: 259mm
• Height to top of suspension bracket: 279mm
• Weight: 3.7kg

Manufacturer: JBL
