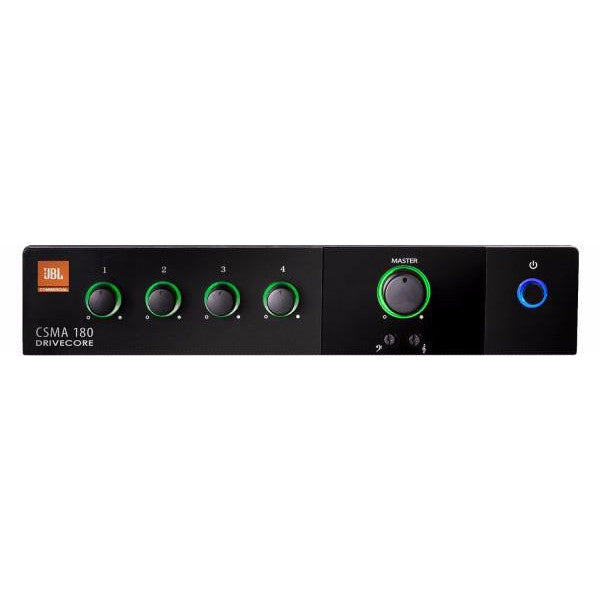

JBL CSMA 180 Drivecore Mixer Amp

Description

The JBL CSMA 180 Amplifier is a professional tool with a sleek industrial look that is designed and built for commercial sound applications.

Utilising Crown’s DriveCore technology enables significantly reduced size and weight – all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments.

The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

Main Features

  • Ideal for commercial and industrial use
  • Fanless, space-saving 1U design
  • Priority muting
  • Configurable output routing
  • Includes rack mounting kit
  • Energy Star

Product Specifications

General

  • Output: 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%
  • Frequency Response: +/- 1dB (@1W into 4 or 8 Ohms)
  • Load Impedance: Stable from 2 - 16 Ohms
  • Sensitivity: 1.4Vrms
  • Signal to Noise Ratio: Greater than 100 dB - 1kHz, A-weighted
  • Input Impedance: Balanced 20K Ohms/Unbalanced 10K Ohms
  • Max Input: +20dBu Typical

Physical & Dimensions

  • Height: 43.3mm
  • Width: 218.5mm
  • Depth: 303.4mm
  • Weight: 4.5kg

Manufacturer: JBL

Related Collections:

Product form

SKU: JBL-CSMA-180

In stock

£356.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The JBL CSMA 180 Amplifier is a professional tool with a sleek industrial look that is designed and built for commercial sound applications.

    Utilising Crown’s DriveCore technology enables significantly reduced size and weight – all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

    The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments.

    The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

    Main Features

    • Ideal for commercial and industrial use
    • Fanless, space-saving 1U design
    • Priority muting
    • Configurable output routing
    • Includes rack mounting kit
    • Energy Star

    Product Specifications

    General

    • Output: 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%
    • Frequency Response: +/- 1dB (@1W into 4 or 8 Ohms)
    • Load Impedance: Stable from 2 - 16 Ohms
    • Sensitivity: 1.4Vrms
    • Signal to Noise Ratio: Greater than 100 dB - 1kHz, A-weighted
    • Input Impedance: Balanced 20K Ohms/Unbalanced 10K Ohms
    • Max Input: +20dBu Typical

    Physical & Dimensions

    • Height: 43.3mm
    • Width: 218.5mm
    • Depth: 303.4mm
    • Weight: 4.5kg

    Manufacturer: JBL
