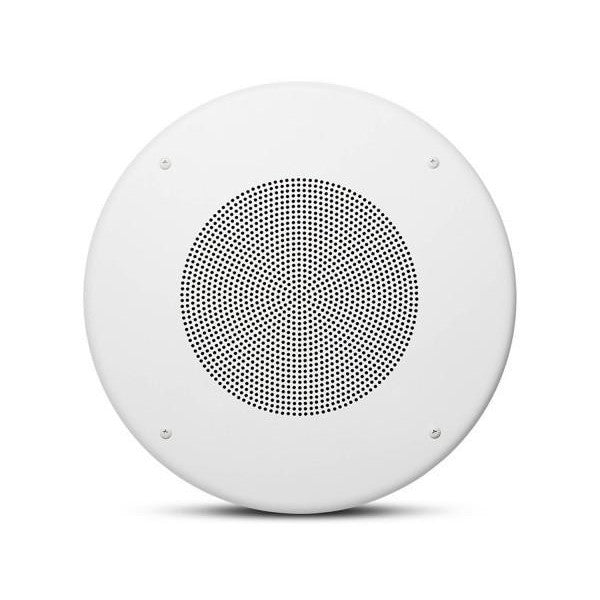

JBL CSS8018 8" Speaker

Description

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

Main Features

  • JBLCSS8018 8" Low Cost Ceiling Speaker
  • Very high 97 dB sensitivity
  • 10 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • Fits CSS-BB8 backcan
  • Excellent performance for paging and background music applications
  • Maximum sound level, even at low tap settings

Product Specifications

General

  • Driver Size (dual-cone): 200 mm (8 in)
  • Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k – 6k Hz): 97 dB
  • Frequency Range (-10 dB) Driver/Grille Assembly: 50 Hz – 17 kHz
  • Installed in CSS-BB backcan: 90 Hz – 17 kHz
  • Coverage (2 kHz): 110°
  • Driver Continuous Power Handling: 20 Watts
  • 100V Taps: 10W, 5W, 2.5W
  • 70V Taps: 10W, 5W, 2.5W, 1.3W
  • 25V Taps: 10W, 5W, 2.5W, 1.3W
  • Transformer Insertion Loss: 1.5 dB Maximum
  • Transformer Connection: Bare wire
  • Motor Mass: 283 g (10 oz)
  • Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Matching CSS Backcan: CSS-BB8 (0.15 cu ft)
  • Other Compatible Backcans:
    • MTC-81BB8 (0.26 cu ft)
    • MTC-200BB6 (0.5 cu ft)
    • MTC-300BB8 (1.0 cu ft)

Physical & Dimensions

  • Bolt Mounting Circle to Backcan: 4 points on 286mm diameter
  • Cutout Diameter Open-back: 216mm
  • In CSS-BB backcan: 295mm
  • Depth (behind grille): 73mm
  • Grille Diameter: 327mm
  • Net Weight (ea): 1.58kg
  • Shipping Weight (ea): 2.25kg

Manufacturer: JBL

Related Collections:

Product form

SKU: JBL-CSS8018

Out of stock

£61.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

    Main Features

    • JBLCSS8018 8" Low Cost Ceiling Speaker
    • Very high 97 dB sensitivity
    • 10 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
    • Fits CSS-BB8 backcan
    • Excellent performance for paging and background music applications
    • Maximum sound level, even at low tap settings

    Product Specifications

    General

    • Driver Size (dual-cone): 200 mm (8 in)
    • Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k – 6k Hz): 97 dB
    • Frequency Range (-10 dB) Driver/Grille Assembly: 50 Hz – 17 kHz
    • Installed in CSS-BB backcan: 90 Hz – 17 kHz
    • Coverage (2 kHz): 110°
    • Driver Continuous Power Handling: 20 Watts
    • 100V Taps: 10W, 5W, 2.5W
    • 70V Taps: 10W, 5W, 2.5W, 1.3W
    • 25V Taps: 10W, 5W, 2.5W, 1.3W
    • Transformer Insertion Loss: 1.5 dB Maximum
    • Transformer Connection: Bare wire
    • Motor Mass: 283 g (10 oz)
    • Safety Agency: Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
    • Matching CSS Backcan: CSS-BB8 (0.15 cu ft)
    • Other Compatible Backcans:
      • MTC-81BB8 (0.26 cu ft)
      • MTC-200BB6 (0.5 cu ft)
      • MTC-300BB8 (1.0 cu ft)

    Physical & Dimensions

    • Bolt Mounting Circle to Backcan: 4 points on 286mm diameter
    • Cutout Diameter Open-back: 216mm
    • In CSS-BB backcan: 295mm
    • Depth (behind grille): 73mm
    • Grille Diameter: 327mm
    • Net Weight (ea): 1.58kg
    • Shipping Weight (ea): 2.25kg

    Manufacturer: JBL
