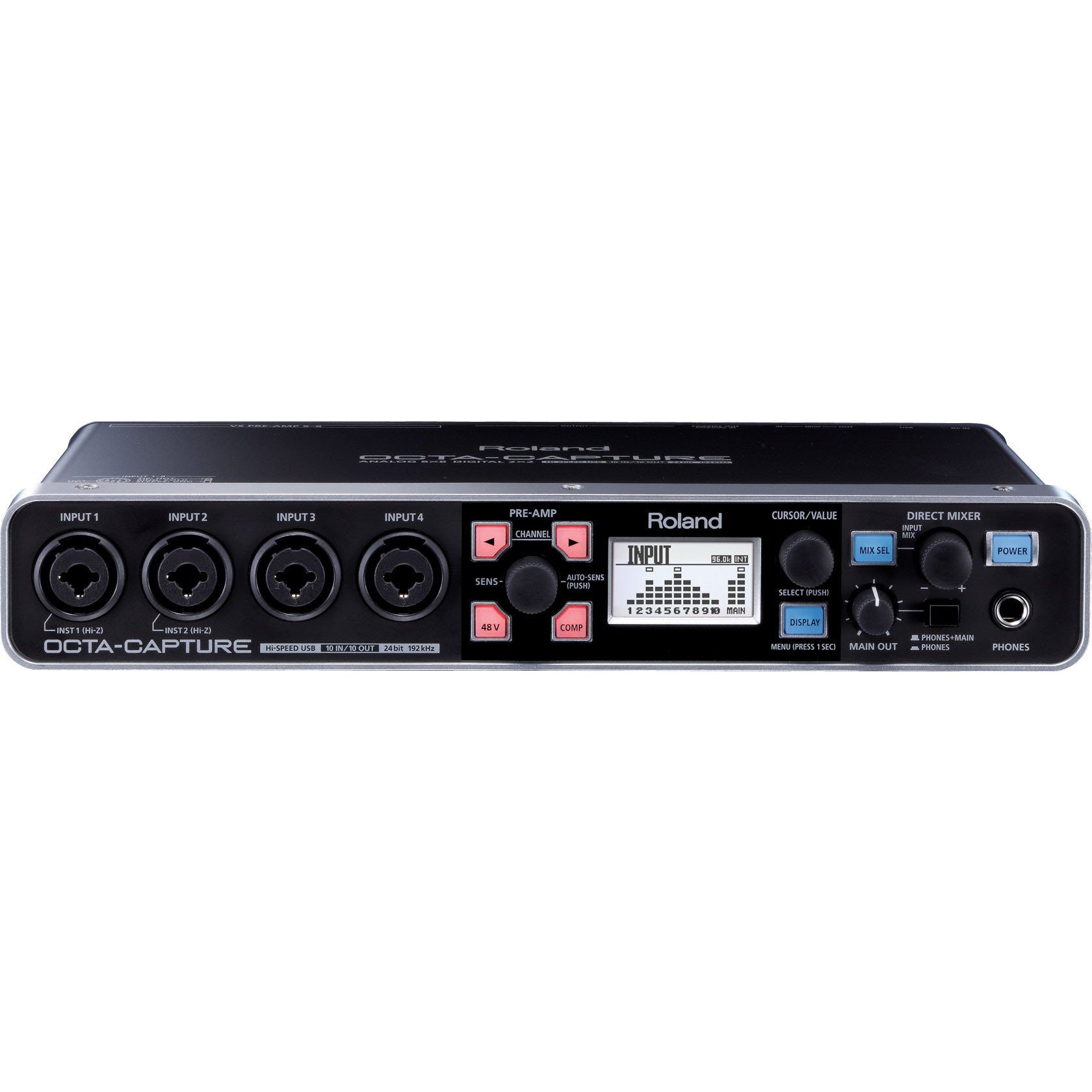

Roland Octa-Capture UA-1010

NUMBER OF AUDIO RECORD/PLAYBACK CHANNELS

• 44.1/48/96 kHzRecord: 10 channels
• Playback: 10 channels192 kHzRecord: 4 channels
• Playback: 4 channels

SIGNAL PROCESSING

• PC interface: 24 bits
• AD/DA Conversion: 24 bits
• Internal: 40 bits

SAMPLING FREQUENCY

• AD/DA Conversion44.1/48/96/192 kHz
• DIGITAL (IN/OUT)44.1/48/96 kHz

NOMINAL INPUT LEVEL

• Input Jack 1—6 (XLR type): -56 to -6 dBu
• Input Jack 7—8 (XLR type)-50 to +0 dBu
• Input Jack 1—8 (1/4 inch TRS phone type)-46 to +4 dBu

NOMINAL OUTPUT LEVEL

• OUTPUT 1—8+0 dBu (balanced)

INPUT IMPEDANCE

• Input Jack 1—6 (XLR type): 5 k ohms (balanced)
• Input Jack 7—8 (XLR type): 10 k ohms (balanced)
• Input Jack 1—8 (1/4 inch TRS phone type): 17 k ohms (balanced)

OUTPUT IMPEDANCE

• OUTPUT 1—8: 1.8 k ohms (balanced)
• PHONES: 47 ohms

FREQUENCY RESPONSE

• 192.0 kHz:
  • 20 Hz to 90 kHz (+0/-8 dB)
  • 20 Hz to 60 kHz (+0/-2 dB)
• 96.0 kHz:
  • 20 Hz to 40 kHz (+0/-2 dB)
• 48.0 kHz
  • 20 Hz to 22 kHz (+0/-2 dB)
• 44.1 kHz:
  • 20 Hz to 20 kHz (+0/-2 dB)

RESIDUAL NOISE LEVEL

• MAIN OUT: -87 dBu typ. (GAIN:min., INPUT 1 — 2 terminated with 600 ohms , IHF-A)
• Stereo Link: ON, Input channel fader: Unity

* Internal Direct Monitor Mixer setting

DYNAMIC RANGE

• AD block: INPUT 1—8: 104 dB typ. (GAIN: min.)
• DA block: OUTPUT 1—8: 113 dB typ.

CONNECTORS

• Input Jacks 1—8 (XLR type / 1/4 inch TRS phone type)
• XLR type (balanced / phantom power +48 V)
• 1/4 inch TRS phone type (balanced)
• Coaxial Input Connector
• Coaxial Output Connector
• Headphones Jack (Stereo 1/4 inch phone type)
• Output Jack 1—8 (1/4 inch TRS phone type (balanced))
• MIDI Connectors (In, Out)
• USB Connector

Other

• Power Supply: DC 9 V (AC adaptor)
• Current Draw: 1.45 A
• Display: 128 x 64 dots Graphic LCD (backlit LCD)

Physical & Dimensions

• Width 284mm
• Depth 158mm
• Height 50mm
• Weight 1.3kg
