Sennheiser EW 512 FILM G4-GBw Camera CH38

Description

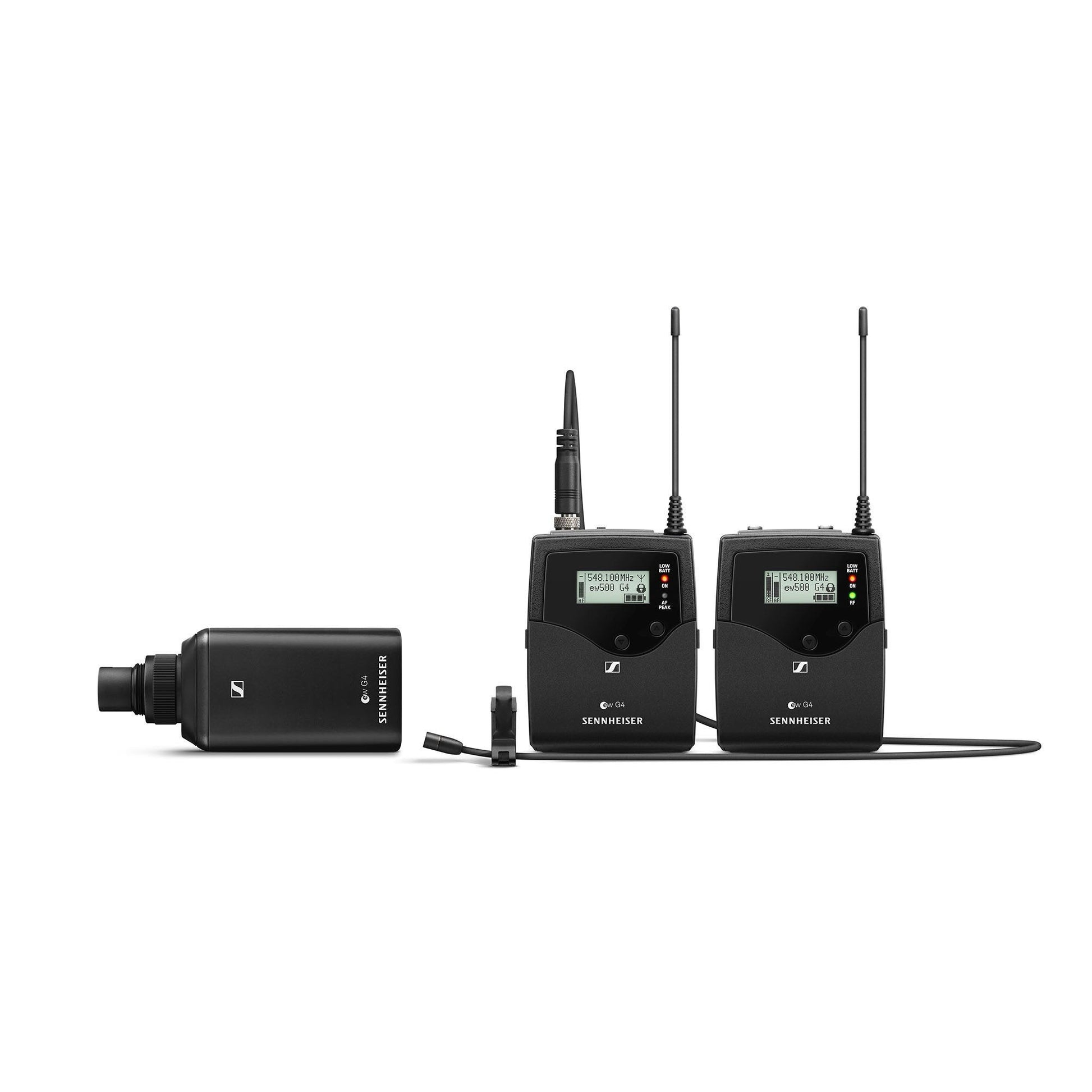

The Sennheiser EW512 FILM G4-GBw Camera Set Reporting System with SK500/SKP500/MKE2 on channel 38 provides the highest flexibility for your video sound and field recording applications.

A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.

The 48V phantom-power equipped SKP 500 turns all wired mics into a wireless transmitter, the MKE 2 Gold is a state-of-the-art professional clip-on microphone offering the highest speech intelligibility.

Features:

  • Highly versatile solution for professional film sound:  Rugged all-in-one wireless system for professional interviews and recording
  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 meters / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time

Specifications:

SK500 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Transmission frequencies
    • Max. 2880 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching bandwidth: up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω switchable:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response
  • Mic: 80 – 18,000 Hz
  • Line: 25 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time: Typically 8 h

SK500 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

SKP500 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Transmission frequencies
    • Max. 2880 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching bandwidth: up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω switchable:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Pilot tone squelch Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response: 80 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 120 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. input voltage: 6 Veff
  • Input impedance: 68 kΩ, unbalanced
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption at nominal voltage: typ. 210 mA with transmitter switched off: ≤ 25 µA
  • Operating time: Typically 8 h

SKP500 - Physical & Dimensions

  • Height: 43mm
  • Width: 105mm
  • Depth: 43mm
  • Weight: 195g

MKE 2

  • Transducer principle pre-polarized condensor microphone
  • Pick-up pattern omni-directional
  • Sensitivity (free field, no load) (1 kHz): 5 mV/Pa, ± 3 dB
  • Max. SPL at 1 kHz: 142 dB
  • Frequency response: 20 to 20.000 Hz ± 3 dB
  • "Equivalent noise level A-weighted (DIN IEC 651)": 26 dB
  • "Equivalent noise level CCIR-weighted (CCIR 4681)": 39 dB
  • Connector: 3.5 mm jack
  • Cable length: 1.60m

Part Number: 507807

Manufacturer: Sennheiser
