Description

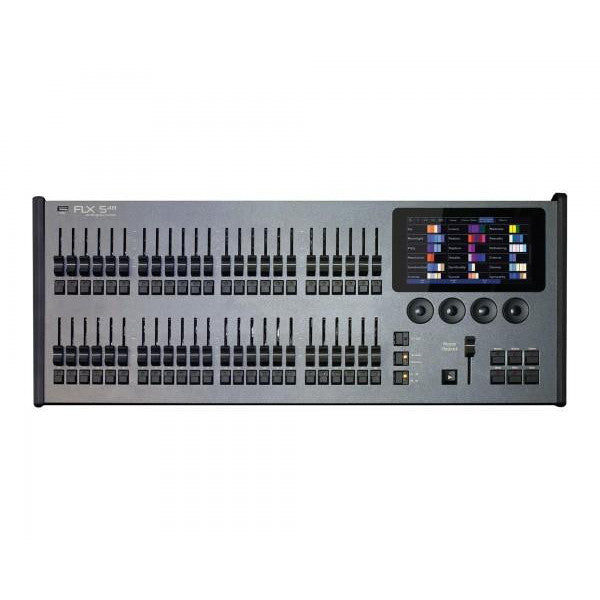

The Zero 88 FLX S48 Lighting Console 1 Universe is easy to learn and simple to use - delivering all the features you need at an affordable price.
With double the power of the FLX S24 intuitive and hands-on control of up to 96 fixtures, and a touch monitor output to provide quick access to palettes and an overview of the show.
Quickly and accurately control colour changing lights using the multi-touch colour & image picker, the encoder wheels or by selecting colours contained within a“mood” using Mood Boards by Lee Filters, and quickly record it straight onto any fader or one of the 96 instant-access colour palettes to recall later. Moving lights can be controlled using the multi-touch pan/tilt grid, the encoder wheels or with automatic effects like “Figure 8”, “Rainbow” and “Fly-In”.
From design to manufacture, the FLX S48 has been developed to work in a wide range of applications, with specific considerations for education, houses of worship, fringe theatre, community venues, corporate events, concerts, rental, fashion, festivals, holiday parks, cruise ships, TV and many more...
Built in tools such as Patch Wizard and Auto Palettes do all the prep work, getting you ready to operate quicker than ever before. Programming time is reduced with a simple three-step programming method for moving lights, colour changing and conventionals - what you want, how you want it, where you want it. And for all those really important features you need over and over again – you always have direct instant access via the dedicated Z button.
FEATURES:
- Control up to 96 LED, moving lights and conventionals
- 48 multi-function faders
- 97 playbacks (each with submaster & full cuestack functionality)
- 96 groups, 4 x 96 palettes (Colour, Beamshape, Position, Effect)
- DVI-D output for optional external touch screen (1024 x 768)
- Multi-touch interfaces for Colour and Moving Lights
SPECIFICATION:
General
- Hardware - Front Panel
- 48 Multifunctional Faders (channels or playbacks, with select or go buttons)
- Internal 7” multi-touch screen
- Master Playback with Go Button playback and master intensity
- 4 embedded encoder wheels with select buttons
- Dedicated buttons for key functions
- Hardware - Inputs/Outputs
- 1 5-pin XLR connector for DMX and RDM
- 1 3-pin XLR connector for DMX and RDM
- Ethernet (Visualisation and Remote Apps)
- 1 Universe over Ethernet using Art-Net 4 or sACN
- 2 multipurpose USB ports (saving shows, connection of accessories & Wings, software updates)
- 1 DVI-D monitor output (optional touch screen control)
- External power supply
- Software - capacity
- 96 Fixture Controls (using single or multiple DMX channels)
- 97 Playbacks (equivalent of Cue Stacks, Submasters or Chases)
- 10,000 cues
- 4 x 96 Palettes (Colour, Beamshape, Position, Effect)
- 96 groups
- Software - features
- Integrated colour picker and “Mood Boards by LEE Filters”
- Multi touch Pan/Tilt grid
- Auto palettes, groups and fixture macros
- Gobo previews and library
- Move on Dark
- Tracking and Non-Tracking modes available
- Support for wireless remote control through handheld devices and remote monitors
- Electrical
- Supply voltage range: 100 - 240V AC; MAX 2A
- Frequency: 50 - 60Hz
- Operating temperature: +5 to +40°C
Physical & Dimensions
- Height: 68mm
- Width: 669mm
- Depth: 284mm
- Weight: 5.5kg
Manufacturer: Zero 88
