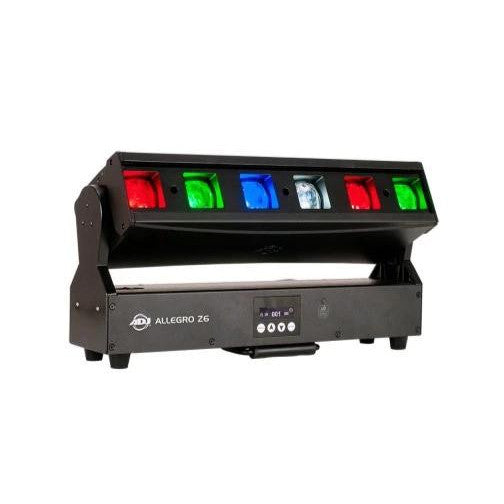

ADJ Allegro Z6 Motorised Zoom

The ADJ Allegro Z6 is a linear fixture that features 6 lenses, motorised zoom and motorised tilt (220-degrees) on the X axis.

It’s powered by six 30W Quad (4-IN-1) RGBW LEDs. Each LED’s colour may be controlled individually. The fixture’s beam angle is adjustable between 4-degrees and 32-degrees.

The Allegro Z6 has a 4-button function display, 5-pin DMX In/Out to link data and locking power connectors to daisy chain power. The fixture also has RJ45 In/Out connections for Art-Net and Kling-Net control. There is a convenient USB input for updating the fixture’s firmware.

FEATURES:

• 6 lenses
• Motorised zoom
• Motorised tilt (220-degrees) on the X axis
• Powered by six 30W Quad (4-IN-1) RGBW LEDs
• Each LED’s colour may be controlled individually
• Beam angle is adjustable between 4-degrees and 32-degrees
• 4-button function display
• 5-pin DMX In/Out
• Locking power connectors
• USB input for updating the fixture’s firmware

SPECIFICATION:

Light Source:

• LED: 6x 30W QUAD (4-In-1) RGBW LEDs (30,000 hr.)
• Motorised Zoom: 4° ~ 32°
• LUX: 47,000 @ 2M, Zoomed in to 4°; 1,900 @ 2M, Zoomed out to 32°

Features:

• Motorised Zoom
• Tilt Lock for stable transporting
• USB Input for Updating Fixture Firmware
• Folding carrying handle
• Rubber feet so fixture can be set on the ground
• All metal construction with black housing
• Includes 2 Omega brackets for mounting to truss
• Flicker Free, 1200Hz PWM frequency

Construction:

• Display: OLED display with function buttons
• 5-pin DMX In/Out for data linking
• RJ45 In/Out for Art-Net & Kling-Net control
• Locking power In/Out to daisy chain up to 6 fixtures (@ 120V), 11 fixtures (@ 230V)

Control:

• Control Modes: DMX512, RDM, Art-Net & Kling-Net
• Multiple DMX channel modes
• Tilt & Tilt Fine: 220°
• Strobe & Pulse Effects
• 6 individually controlled Pixels
• 0-100% Dimming + 16-bit Fine Dimming
• 6 Pre-set Dim Curve Modes plus Dim Speed control
• With Wired Digital Communication Network

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Power consumption: 240W max

Dimensions & Weight:

• Dimension (LxWxH): 19.6” x 4.5” x 11” / 500x113x278mm
• Weight: 21 lbs. / 9.5kg.

In The Box:

• Allegro Z6
• Two Omega Brackets
• Locking power cord
