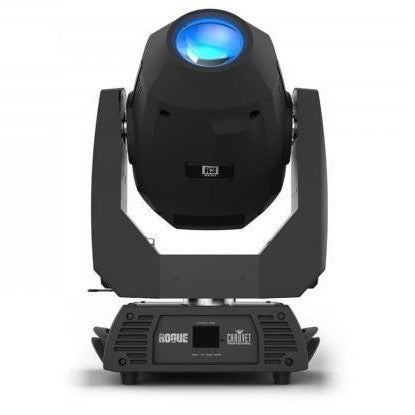

Chauvet Rogue R3 Spot

The Chauvet Rogue R3 Spot delivers intense output, crisp optics, sharp focus and maintains a value proposition designed to maximise ROI.

This feature-packed moving spot has a bright 300 W LED light engine that produces an even field of light, as well as rotating and static gobos, an 8 position and split-colour enabled colour wheel, and three facet prism to create stunning looks.

A quick moving zoom range of 13 – 37° adds to its flexibility of use by giving the Rogue R3 Spot the ability to cover large areas.

FEATURES:

• Intense 300 W LED light engine for punchy, bold beams
• Zoom angle of 13° to 37° to easily cover stages and surfaces from a distance
• Perfect gobo morphing between gobo wheels
• Two colour wheels with 7 colours, split colour ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• Neutrik® powerCON® power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM settings to maintain flicker free operation on camera
• Simple and complex DMX channel profiles for programming versatility

SPECIFICATION:

Optical

• Light Source: 1 LED (CW) 300 W, (8.8 A), 7,564 K, 50,000 hours life expectancy
• Colour Temperature (at full): 7,564 K
• CRI: 74
• Beam Angle: 12° to 36°
• Field Angle: 13° to 37°
• Zoom Angle: 13° to 37°
• Illuminance (13°): 12,828 lux @ 5 m
• Illuminance (37°): 1,768 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/250°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
• Colours (1): 7 + white, split colours, continuous scroll at variable speeds
• Colours (2): 7 + white, split colours, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
• Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorised
• Focus: Motorised
• Frost: Motorised
• Iris: Motorised
• Prism: 3 Facets, motorised, rotating
• Strobe Rate: 0 to 22 Hz
• Move in Black: Yes

Connections

• Power Connection: Edison (local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 19 or 25
• Modes/Personalities: 2 personalities (19, 25)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
• Power and Current: 514 W, 4.28 A @ 120 V, 60 Hz
• Power and Current: 488 W, 2.35 A @ 208 V, 60 Hz
• Power and Current: 492 W, 2.14 A @ 230 V, 50 Hz

Certifications/Qualifications

• CE, MET
• IP Rating: IP20, dry location
• Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical & Dimensions

• Height: 601mm
• Width:373mm
• Depth: 282mm
• Weight: 22.7kg
• Exterior Colour: Black
• Housing Material: High-impact flame-retardant polymer

Manufacturer: Chauvet
