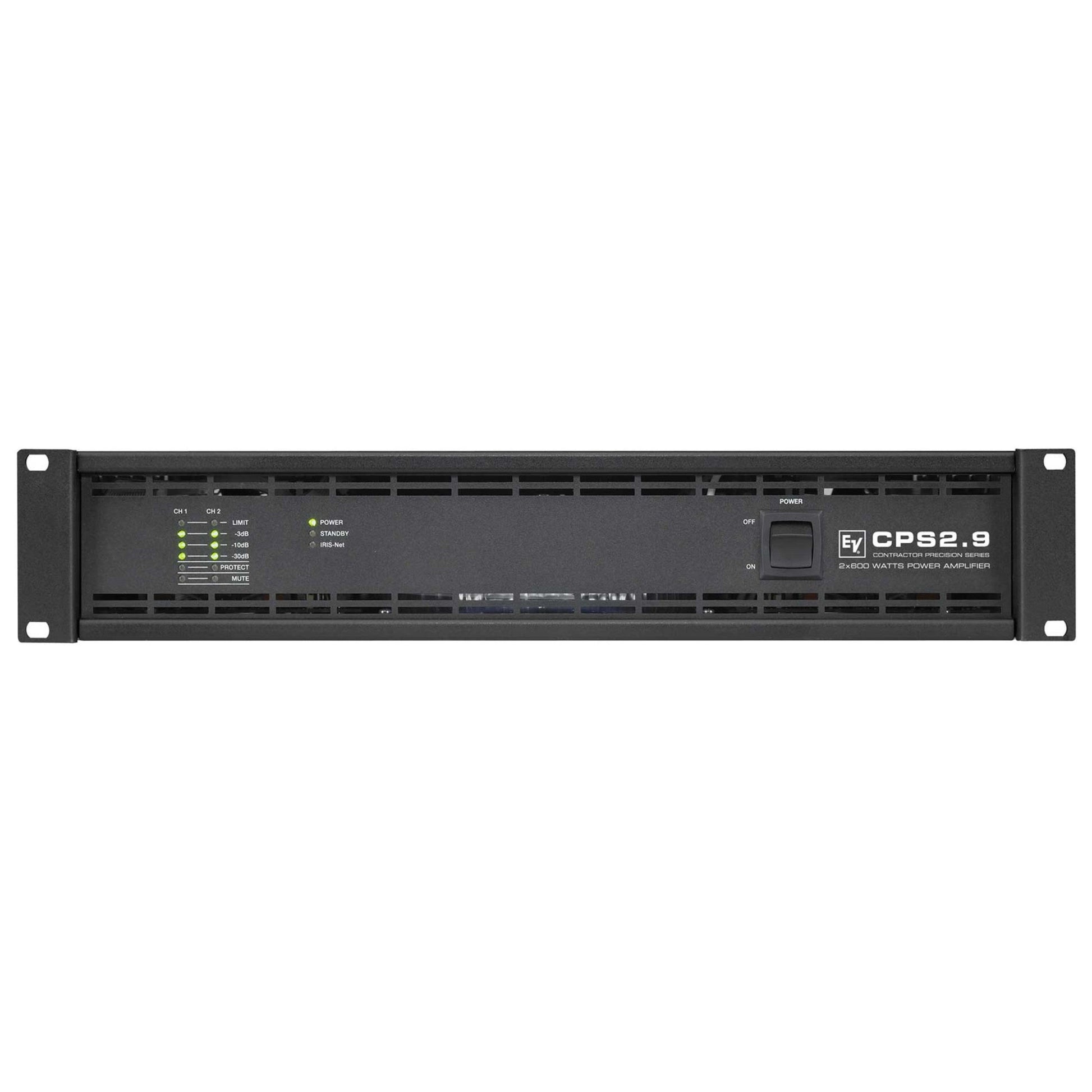

Electro-Voice CPS 2.9 MK II Power Amplifier

Designed for the contractor, the CPS 2.9 MK II feature 2-RU chassis, Phoenix-type connectors for inputs and outputs, pre-programmable power-on delay, easy power-on via remote contact closures, rear panel attenuators, and a switchable 50 Hz high-pass filter.

Like the CPS multi-channel amplifiers, the CPS 2.9 MK II also includes a module slot for the RCM-810 remote-control module, enabling networking features for system diagnostics and control via IRIS-Net software.

FEATURES:

• Up to 2 x 1250 W into 2 ohms
• Phoenix-type input and output connections
• Remote power-on/off contact
• Rear-mounted attenuators
• Programmable time for custom power-on delay settings
• Module slot for optional RCM-810 card, allowing IRIS-Net control and monitoring
• Switchable 50 Hz high-pass filter
• Three-stage front-to-rear fans
• Class-H design
• Complete protection package

SPECIFICATION:

General

• Amplifier Gain: 32 dB
• Analog Inputs: 2, electronically balanced, Phoenix-type
• Audio Network: No
• CAN Bus Interface: Optional (RCM-810 card)
• Continuous Rated Power (1 kHz, THD 1%) 2Ω: 1250 Watts
• Continuous Rated Power (1 kHz, THD 1%) 4Ω: 900 Watts
• Continuous Rated Power (1 kHz, THD 1%) 8Ω: 550 Watts
• Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω: 800 Watts
• Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω: 400 Watts
• Cooling: Front-to-Rear, 3-stage-fans
• Crossover Type: Modular
• DIM 30: 0.05 %
• Electronics Type: Amplifier
• Frequency Response10 Hz - 40 kHz ±1 dB
• Impedance: 2/4/8 Ω
• Input Impedance (Balanced): 20 kΩ
• Input Sensitivity: +5.1 dBu (1.39 Vrms)
• Intermodulation Distortion (SMPTE): 0.1 %
• Mains Voltage: 240 V, 230 V, 120 V or 100 V; 50 Hz - 60 Hz (factory configured)
• Maximum Bridged Output 4Ω: 2800 Watts
• Maximum Bridged Output 8Ω: 1800 Watts
• Maximum Input Voltage: +21 dBu (8.69 Vrms)
• Network Control (IRIS-Net): Optional (RCM-810 card)
• Slew Rate: 27 V/µs
• Topology: Class-H
• Total Harmonic Distortion: 0.03 %
• Variable Load Drive (VLD): No

Physical & Dimensions

• Height: 2RU 88.1mm
• Width: 482.6mm
• Depth: 421.5mm
• Weight: 16.3kg

Manufacturer: Electro Voice
