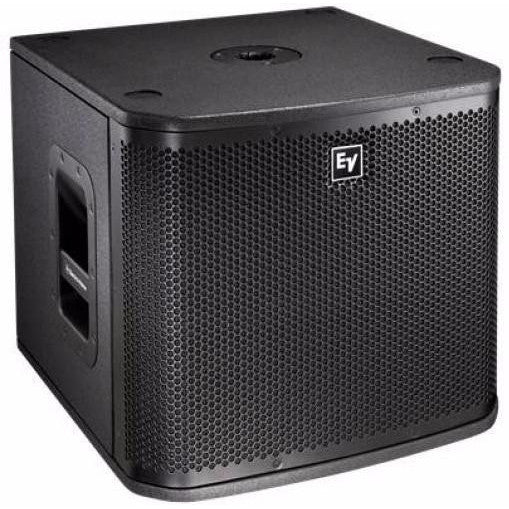

Electro-Voice ZX1-Sub 12" Passive PA Sub

The ZX1-Sub is optimised for performance with a variety of EV loudspeakers, including ZX1, EVID, and EVU models, and will add a deep low-frequency punch that you can feel as well as hear.

An ideal choice to complete a wide range of smaller fixed installations or live sound systems.

Main Features

• Optimised for performance with a variety of EV loudspeakers
• Ideal for ZX1, EVID, and EVU models
• Adds a deep low-frequency punch
• Ideal for smaller fixed installations or live sound systems

Specification

• Frequency Range (-10 dB):  42 - 200kHz
• Shipping Weight:  56lbs (25.4kg)
• Weight Net:  43.65lbs (19.8kg)
• SPECIFICATIONS
• Depth:  18" (457.2mm)
• Width:  17.5" (444.5mm)
• Height:  15.75" (400mm)
• Grille:  16 GA steel with black powder coat
• Enclosure Material:  9-ply 15 mm plywood, internally braced with textured paint
• LF Transducer:  EVS-12S, 305 mm( 12") Woofer
• System Power Handling (Continuous/Program/Peak):  400 / 800 / 1600Watts
• Max. SPL/1m (calc):  127dB
• Sensitivity 1 W/1 m:  94dB
• Frequency Response (-3 dB):  53 - 125Hz
• Input Connections:  NL4 style (2)
• Speaker Type:  Subwoofer
• Nominal Impedance:  8Ω
• Power Rating:  1600W
• Woofer Size:  12inch
• Powered or Passive:  Passive
• Family:  ZxZxA
