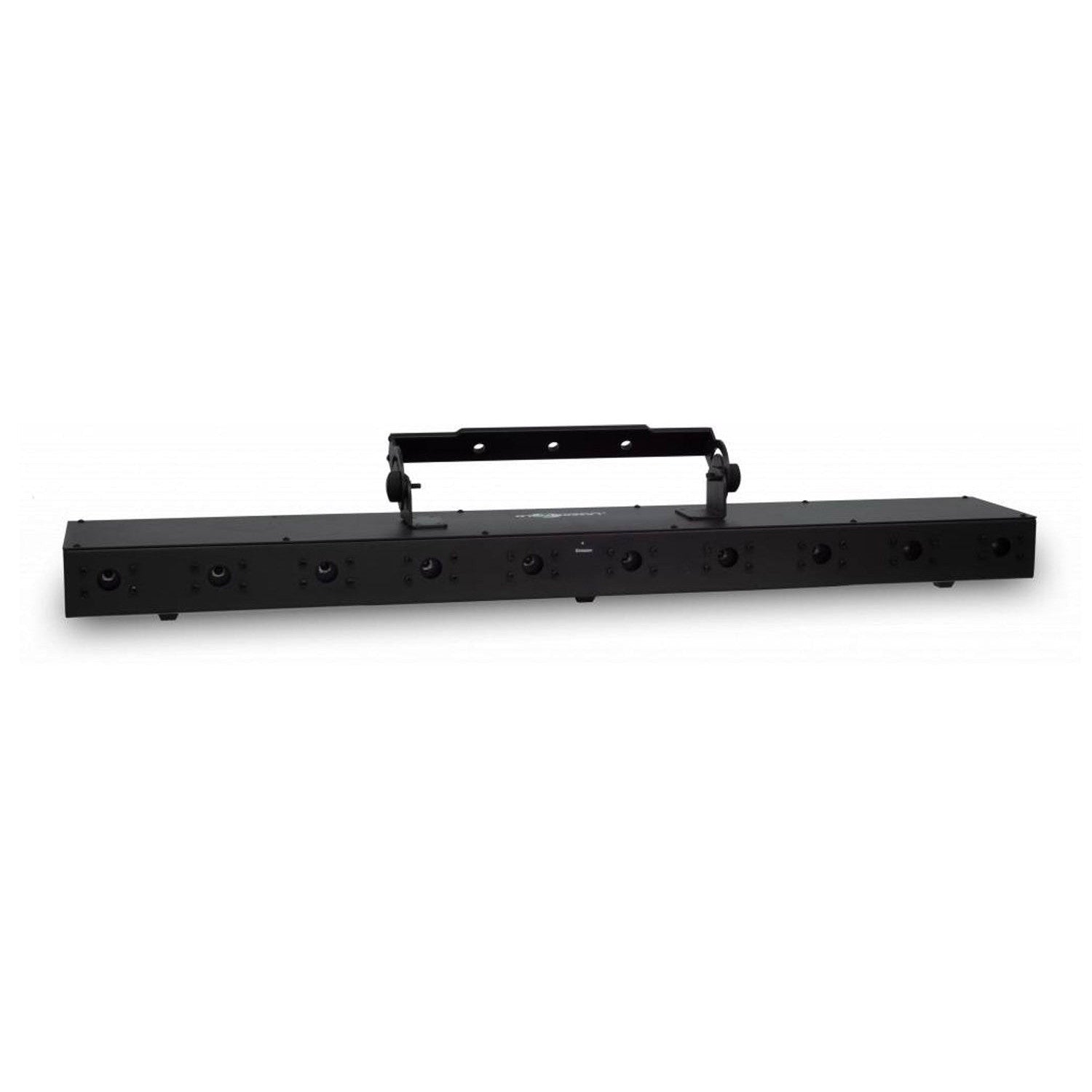

Laserworld BeamBar 10G MK2 Laser

The BeamBar 10G-532 is a bar with 10 single beam laser outlets, each equipped with a green DPSS laser source 100mW/532nm.  The advantages of the BeamBar 10G-532 are that it's a very bright green, it's very affordable and has a very good beam profile.  Each laser beam can be individually aligned through a 4-point alignment system, that can easily be accessed from the front - so no opening of the housing is necessary.

This laser can be controlled through 13 DMX channels, so each laser source can be controlled individually. Thus it's possible to create many different chaser, beam or fan effects.  Due to the standard DMX compatibility, the BeamBar 10G-532 can easily be integrated into an existing lighting setup.

This fixture is a great effect for stages, live gigs and nightclubs, as well as for TV Shows and show productions.

FEATURES:

• A laser that creates fans of laser beams
• Can be controlled through DMX or runs in stand-alone or music mode
• Every unit has 10 laser outlets
• Each laser outlet is equipped with a laser diode that produces clear and crisp laser beams
• Controlled through 13 DMX channels
• Available in three colours, blue, red or green

SPECIFICATION:

General

• Total Power typical:  1,200mW
• Guaranteed power:  1,200mW
• Power Blue:  10 x 100mW / 532nm
• Beam Specifications:  ca. 2mm / <1.5mrad
• Laser Sources:  DPSS
• Laser Class:  3b
• Operation Modes:  DMX, Stand-alone, Sound-to-Light, master-slave
• Accessories:  Interlock connector, manual, key
• Power Supply:  100V - 250V AC 50/60Hz
• Power Consumption:  50W

Physical & Dimensions

• Width: 1000mm
• Height: 160mm
• Depth: 85mm
• Weight: 9.0kg
